Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: XiMei
  • Model Number: RG58
  • Type: Coaxial
  • Number of Conductors: ≥ 10
  • Inner conductor: BC/TC
  • Dielectric: SFE
  • Shield: Al foil
  • Braiding: T/C 60%-100%
  • Jacket: PVC
  • Color: white/black/grey/green
  • Certificate: CE/ROHS/ISO...
  • Price: Competitive
  • Quality: high

Packaging & Delivery

Packaging Details 1) Packing length: 100m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll, other length is available;
2) Inner packing: wooden reel, plastic reel, and paper reel is available;
3) Outer packing; Carton box, put out box, pallet acailable;
4) Other packing available accorfing to client's request.
Delivery Time 15Days/1*20GP 20Days/1*40GP

Specifications

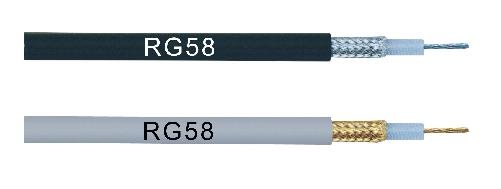

RG58 coaxial cable
1) CERTIFICATE: CE ISO RoHS
2) Conductor: CU, T/C
3) 19*0.18CU+2.95SPE+112*0.1CU+4.95PVC
4) OEM is ok

 RG58 coaxial cable
1. Specification RG58
BASIC CONSTRUCTION
ConductorMaterialBC/TC
Nom.Dia.19AWG
DielectricMaterialPE
Nom.Dia.2.95mm
ShieldMaterialBC/TC braiding
Coverage95%
JacketMaterialPVC/PE
Nom.Thick.0.80mm
Nom.Dia.4.95mm

2. BASIC CHARACTERISTICS & Packing



Nominal Impedance(ohm) 50±2
Nominal Velocity of Propagation(%) 83
Nominal Capacitance(pF/m) 66
Sparker Test(VAC) 3000
SRL(dB) 20 20
Attenuation(68°F(20°C))          Frequency(MHz) Maximum(dB/100ft)Maximum(dB/100m)
 5 1.90 6.30
 50 2.46 8.10
 150 4.30 14.10
 220 5.20 17.10
 450 7.50 24.60
 900 10.70 35.00
 1500 13.40 45.60
 1800 15.30 50.10
 200016.10 53.00



3. Our factory









4. Our certification



5. Our Exhibition

Russia



H.K.



6. Applications



1)CATV-community antenna television

2)CCTV-closed-circuit television

3)DBS-direct broadcasting satellite



We are in the field of coaxial cable,such as RG58,RG59,RG6,RG7,RG11,QR500,QR540,F

 Any further questions, please contact us!

 Big orders have big discount!



1.OEM is OK

 2.Don't hesitate to contact us! Inquiries and visits are more than welcome.

3. We exported to many countries.
